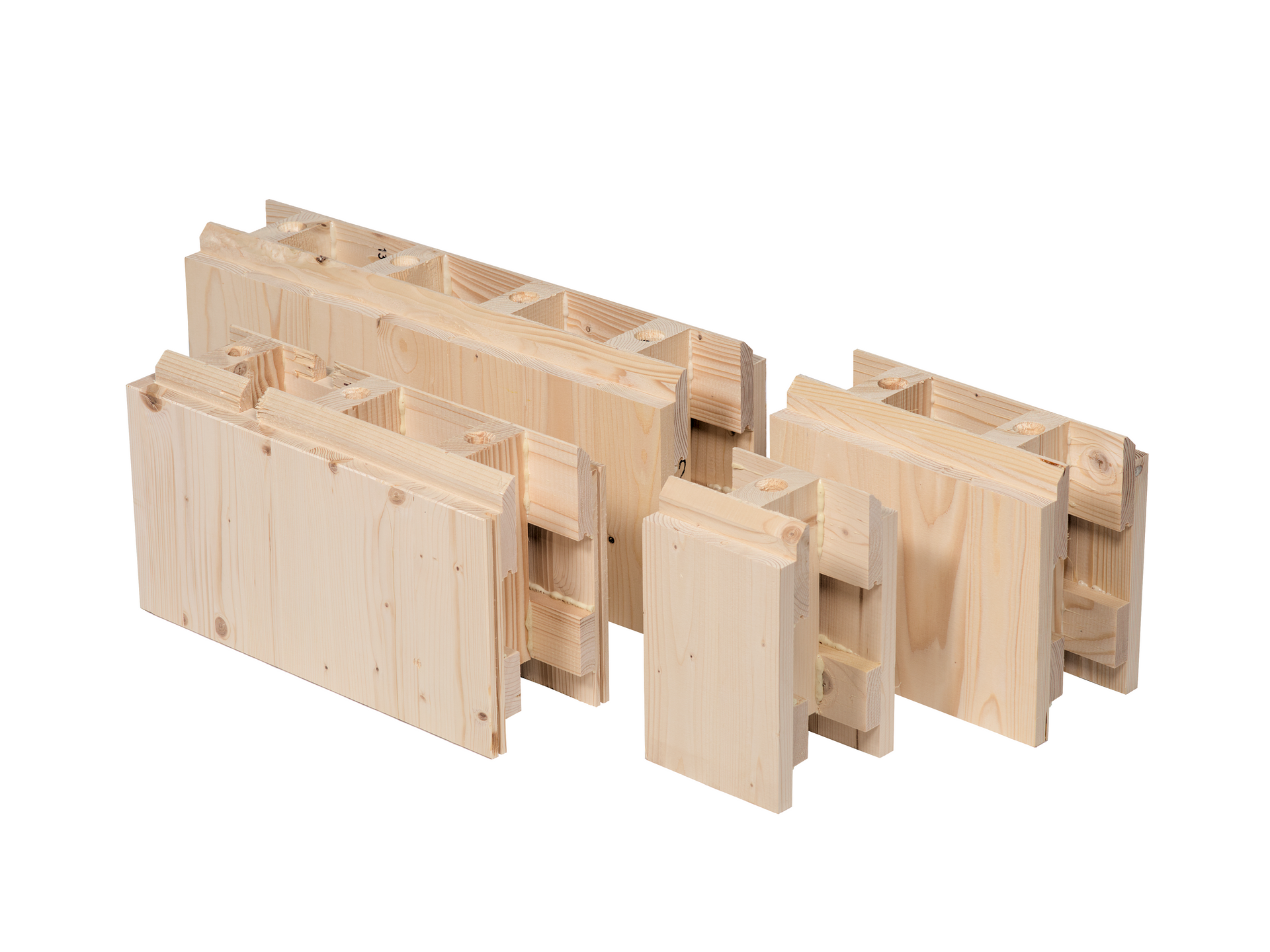

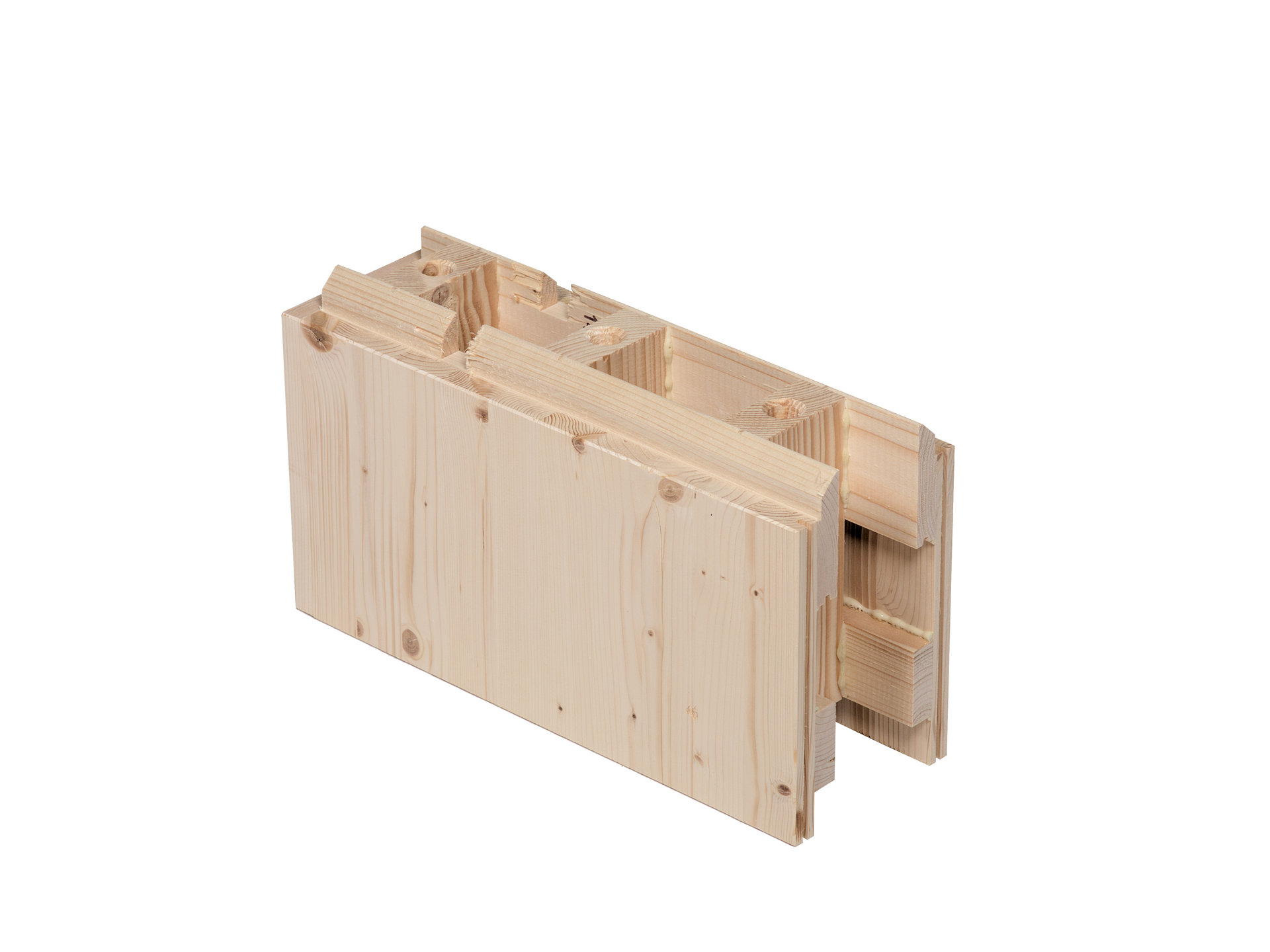

Smart Bricks are prefabricated solid timber modules that can be assembled like a plug-in system to form load-bearing or non-load-bearing interior and exterior walls. The system has already been successfully installed in over 80,000 square metres of wall space and is suitable for single-family homes, smaller multi-ownership projects, and also for applications in the agricultural, commercial and municipal sectors.

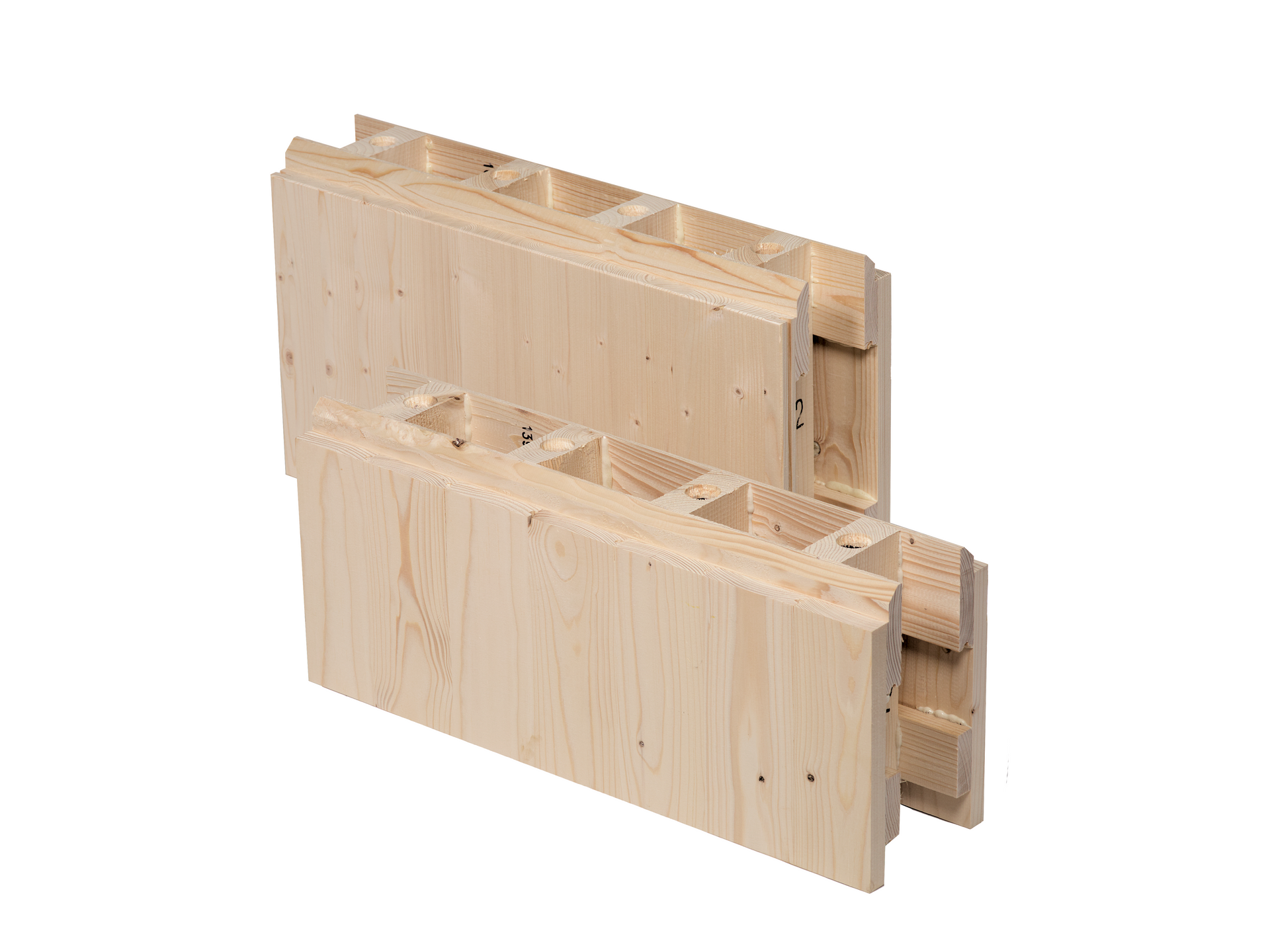

The construction system consists of precisely installed elements that are joined layer by layer to form walls.  A special interlocking connection ensures stability – even at corners and wall connections. Pipes and cables can be installed very easily and all matching modules complete the Smart Brick building system.

Due to the small size and low weight of the moduls, delivery is possible even to construction sites that are difficult to access without truck.

Technical features at a glance:

·      Wall thickness: 160 mm

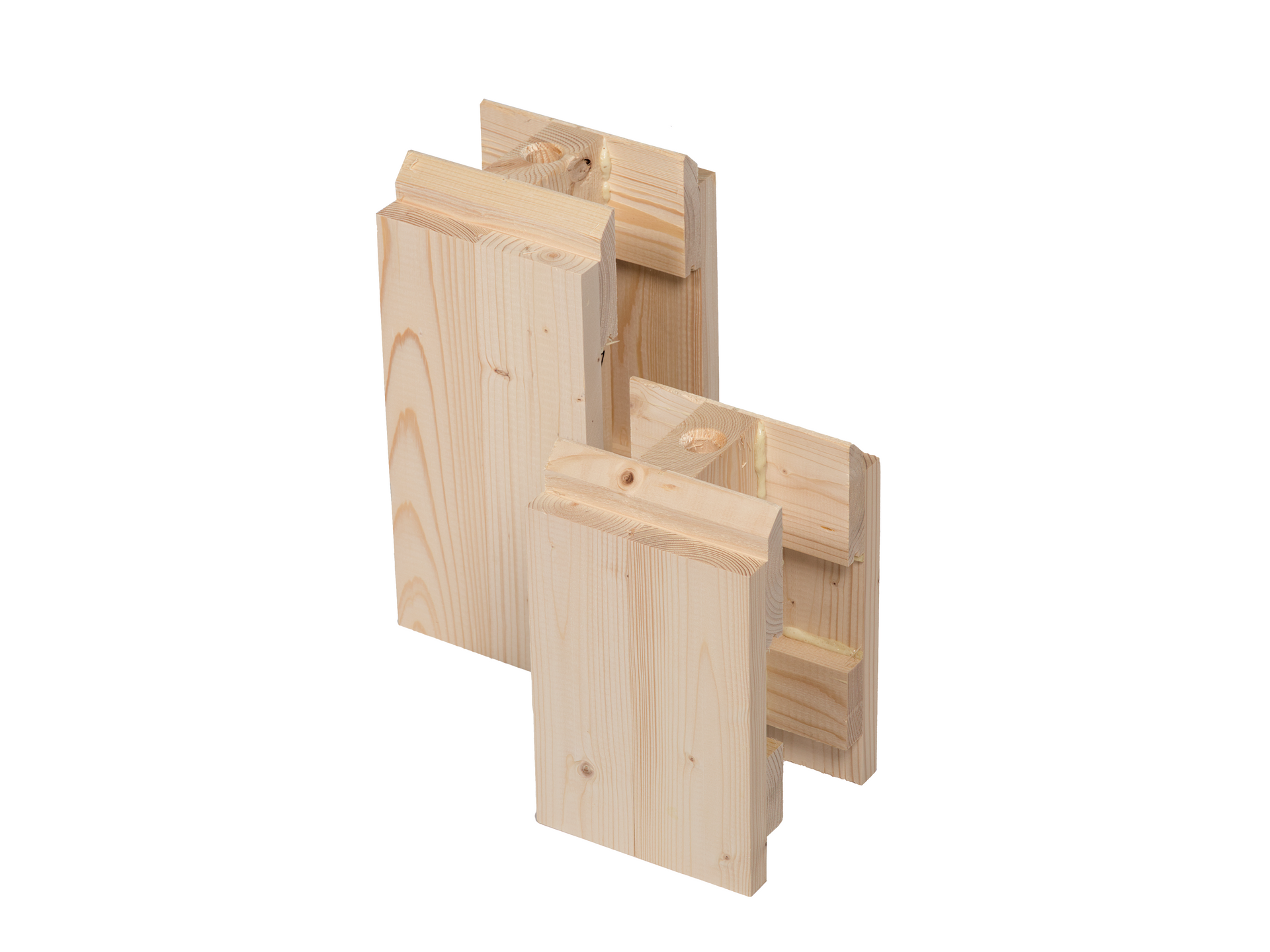

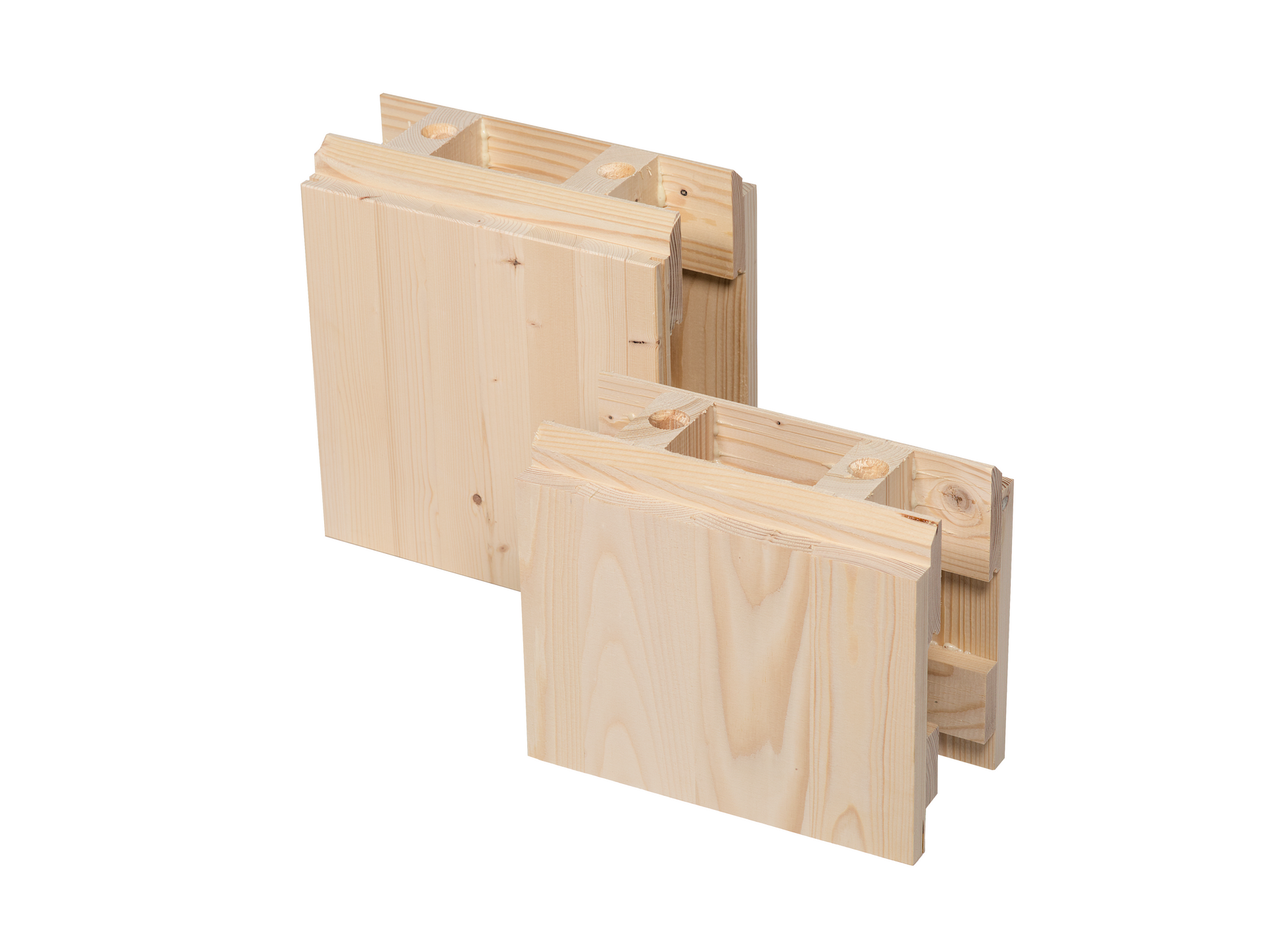

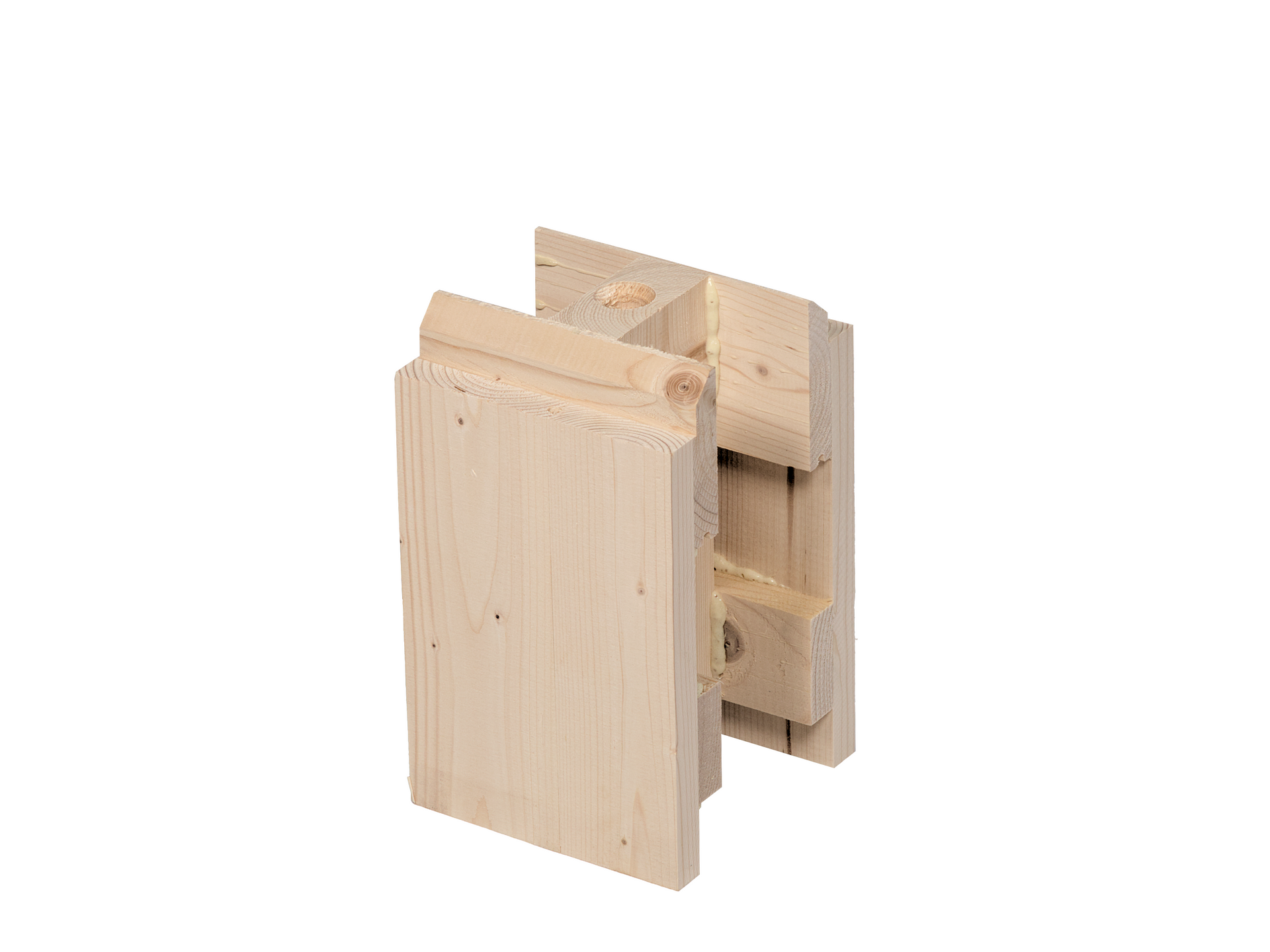

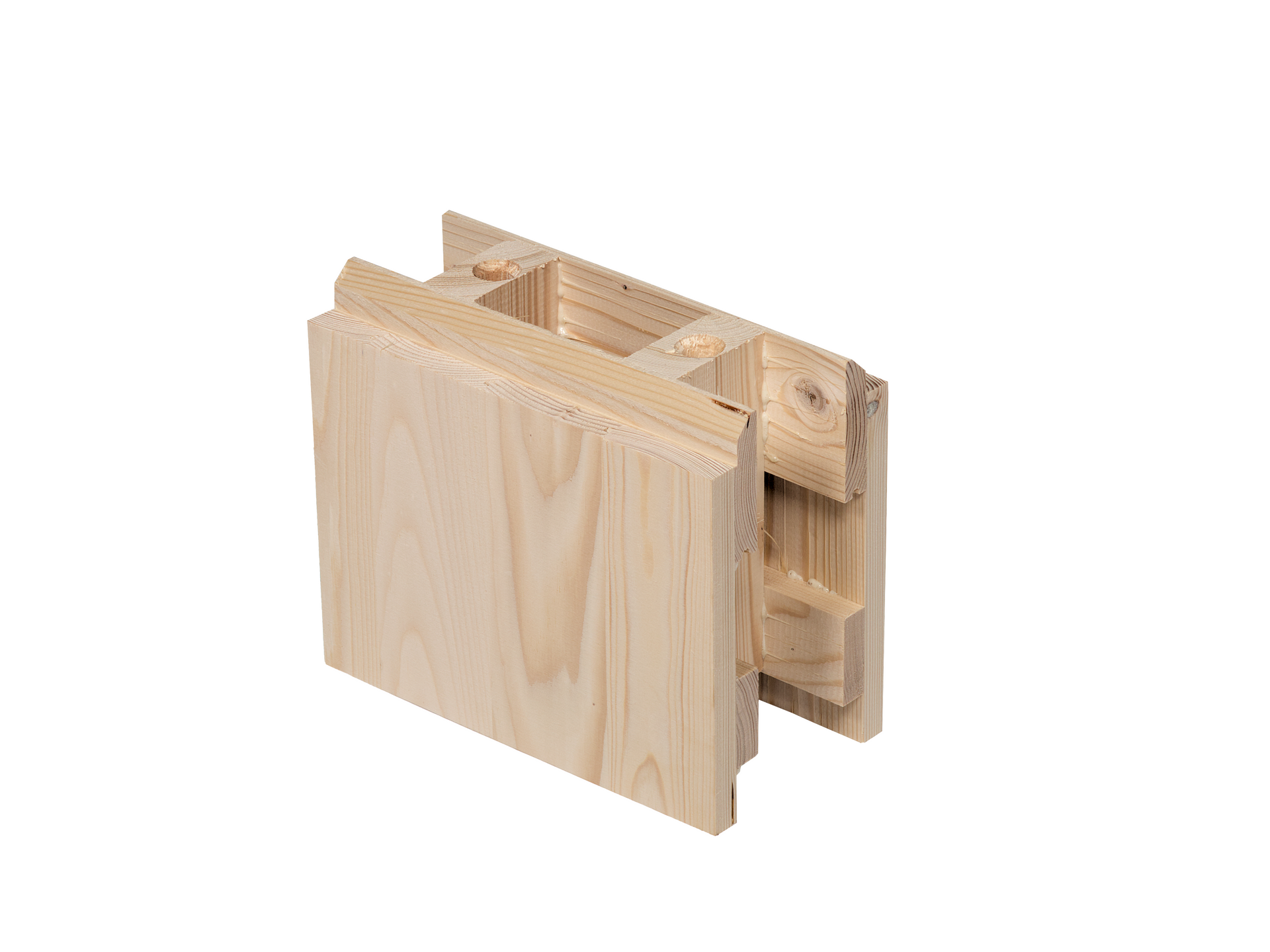

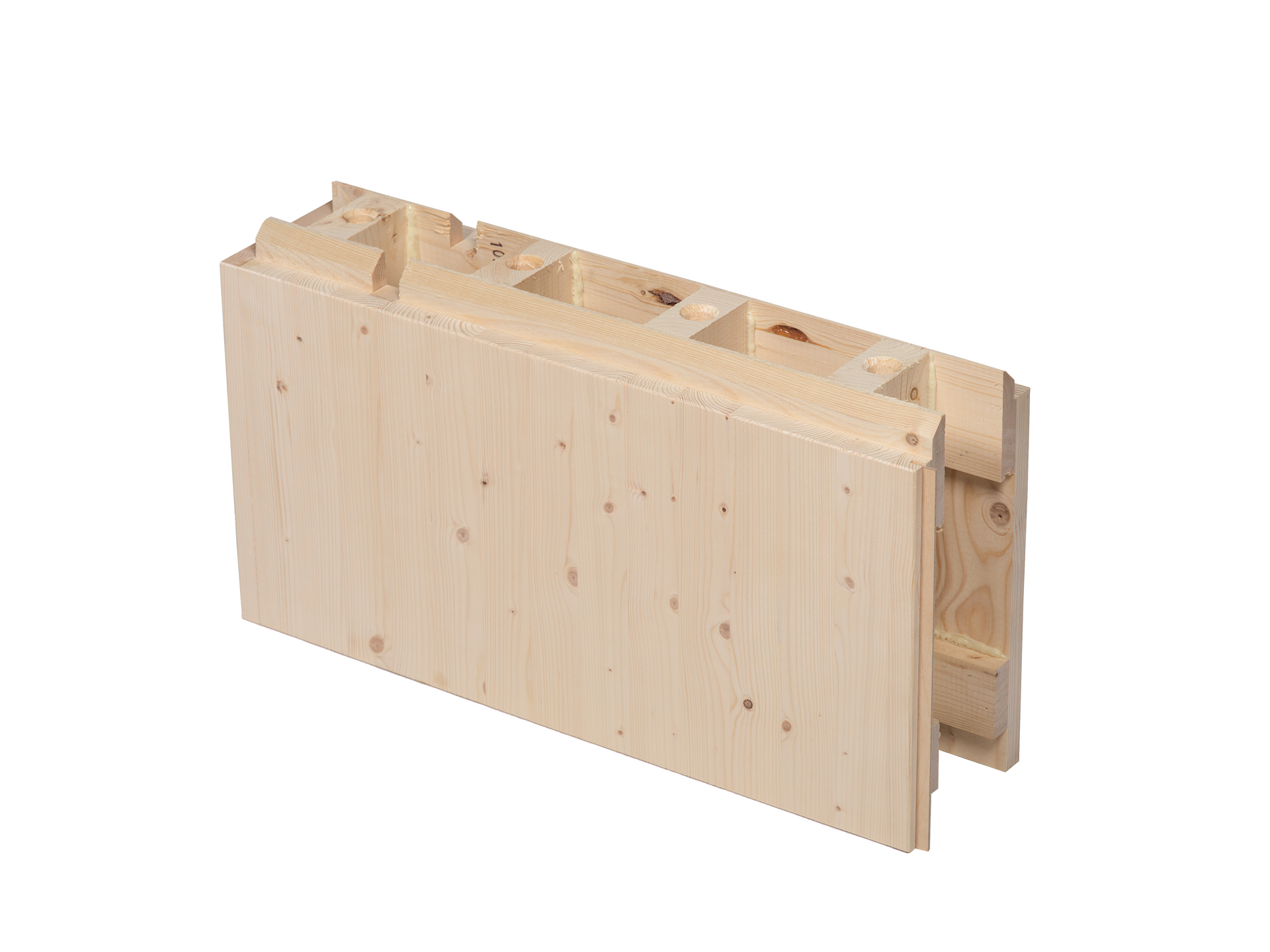

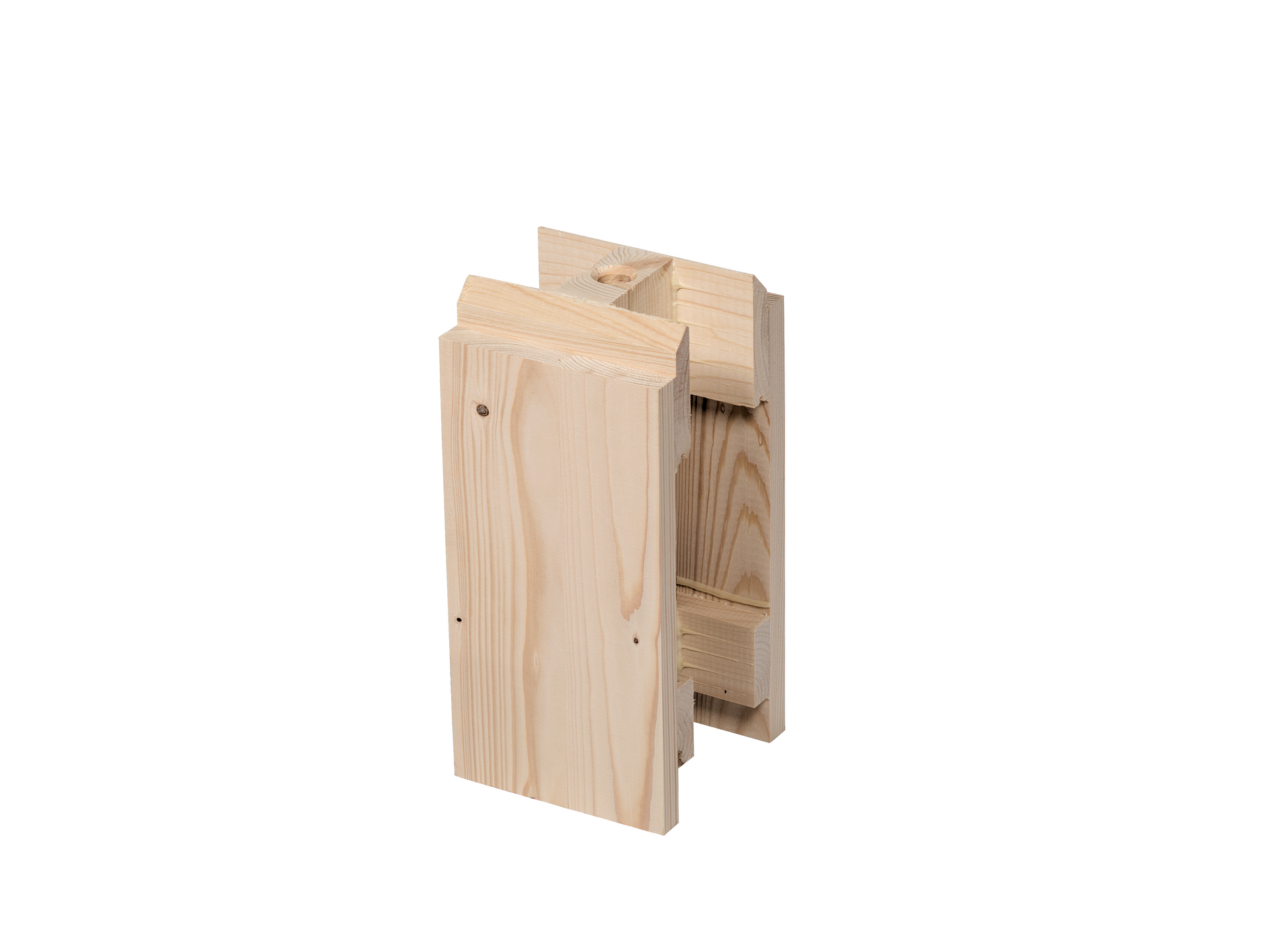

· Lengths: 160, 320, 480 and 640 mm

· Heights: 240 and 320 mm

· Module weight: max. 6.5 kg

· Bulk density: 280 kg/m³

· Grid dimensions: horizontal 16 cm / vertical 8 cm

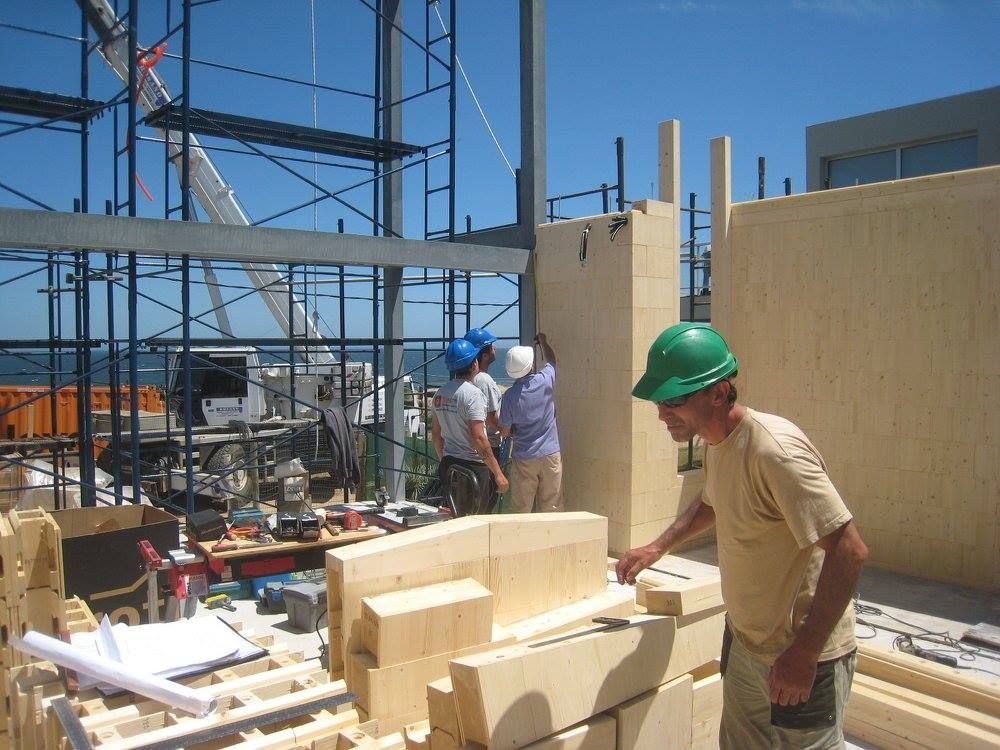

Smart Bricks are particularly suitable for regions with a shortage of skilled labour. A single specialist is sufficient for the training on the construction site – all further steps can be taken over by helpers or the builders themselves. This makes the system ideal for self-construction projects, community buildings or markets with little craftsmanship potential.

The system also meets high technical requirements: walls with plasterboard already attached achieve sound insulation of Rw > 40 dB, and with sand filling, even up to Rw = 48 dB. Fire protection is at REI30 and more. Smart Bricks are suitable for buildings with up to two full storeys and a developed attic space. In combination with the Smart Floor, a recessed attic floor can also be realised.

Highlights at a glance:

• Over 80,000 m² of successfully installed wall surface
• Modular plug-in system with few components
• For single-family and small multi-family houses, also commercial & agricultural use
• Easy assembly with only one skilled worker needed for training
• Ideal for areas with a shortage of skilled labour and for self-build projects
• Delivery also possible without truck access
• High sound insulation: up to Rw = 48 dB
• Fire protection REI30
• For up to 2 full floors + attic (attic with Smart Floor possible)

Smart Bricks are the ideal solution for anyone who wants to build sustainably, efficiently and systematically – clearly structured, high-quality, flexible and with decades of experience behind them.
